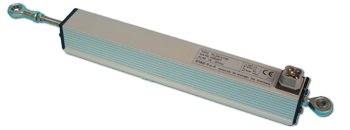

The linear motion potentiometers series PL2S have a 31 mm square section case, 6 mm diameter shaft and two fixing ball joints at the ends.
Their measuring strokes range from 50 to 500 mm, and their standard resistive value is 5 KOhm. The conductive plastic resistive element grants the transducer a long life (20,000,000 motions), high independent linearity (±0,075% tolerance) and virtually infinite resolution.
Thanks to their high protection degree against environmental agents the potentiometers series PL2S are suited for severe applications, even outdoors, at extreme temperatures.
mm 50 – 100 – 150 – 200 – 250 – 300 – 400 – 500
5 Kohm (standard) – 2 Kohm, 10 Kohm, 20 Kohm on request
