RHEINTACHO Rotational Speed Sensors / GH Binroth

Reliable Rotational Speed Measurement and Control

RHEINTACHO Rotational Speed SensorsRHEINTACHO specializes in developing and producing rotational speed sensors to cope with the most demanding environments. RHEINTACHO rotational speed sensors have exceptional operability and service life and are able to withstand high pressures, temperature fluctuations, electromagnetic disturbances, and aggressive media as well as the impact of jets of water or steam.

RHEINTACHO develops, builds, and produces speed sensors with the latest research and technology. Each rotational speed sensor is constructed with carefully selected components and tested during each step of production in order to ensure it meets RHEINTACHO’s high standards for quality and performance.

RHEINTACHO offers a wide range of rotational speed sensors for varied applications from earth moving equipment and machine tools to large diesel engines and wind power plants. All RHEINTACHO rotational speed sensors feature a frequency range from 0 Hz to 30,000 Hz, standard pressure resistance up to 500 bar, patented individual wire sealing to eliminate leaks, resistance to (hydraulic) oil, salt, alkaline solutions, and acid, and a wide operating temperature range (-40 °C to +160 °C). Additionally to this, we also provide custom solutions, quickly and inexpensively.

RHEINTACHO One-Channel Hall Sensors

One-channel Hall-effect sensors are a reliable all-around option for rotational speed detection. This line of products is well-suited for scanning in hydro motors and oil-filled gearboxes with applications in construction vehicles, mobile operating machines, hydraulic drives, combustion engines on running machines, and marine diesel engines.

Features:

  • Air gap: 2.0 mm at module 2 / 3.5 mm at module 4
  • Frequency: 0 Hz … 30 kHz
  • Degree of protection: depending on sensor series IP65 / IP67 / IP69K / IP6K9K

RHEINTACHO One-Channel Hall Sensors

RHEINTACHO One-Channel Hall Sensors

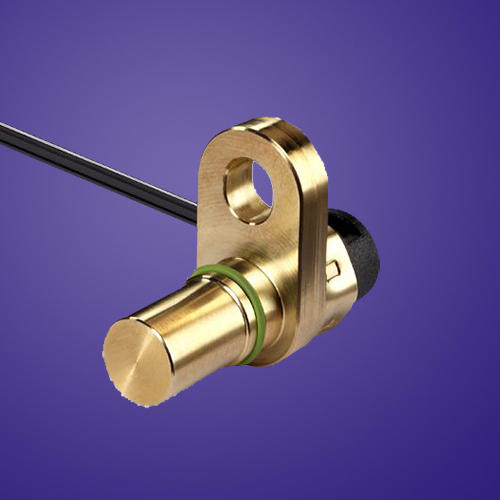

RHEINTACHO One-Channel Differential Hall Sensors

One-channel differential-Hall sensors are the perfect choice for applications with harsh environmental conditions. These products are very effective with gearwheels that run slightly untrue and work well in applications such as mobile operating machines, electric drives, and hydraulic drives.

Features:

  • Air gap: 3.5 mm at module 2
  • Frequency: 0.1 Hz … 20 kHz
  • <>
  • Wide temperature range
  • Compact form
  • Degree of protection: depending on sensor series IP65 / IP67 / IP69K / IP6K9K

RHEINTACHO One-Channel Differential Hall Sensors

RHEINTACHO One-Channel Differential Hall Sensors

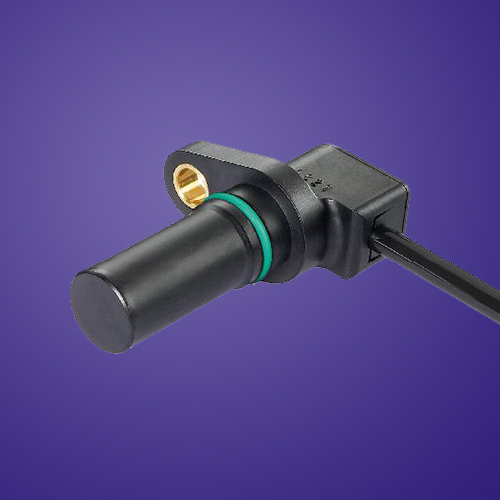

RHEINTACHO Two-Channel Hall PWM Sensors

Two-channel Hall sensors with PWM detect both speed and direction simultaneously. They work well with small, high-resolution gearwheels in applications such as mobile operating machines, electric drives, and hydraulic drives.

Features:

  • Air gap: max. 4 mm
  • Frequency: 12 kHz forward / 6 kHz reverse
  • Degree of protection: depending on sensor series IP65 / IP67 / IP6K9K
  • Highly reliable with 2-wire-design
  • Standstill detection

RHEINTACHO Two-Channel Hall PWM Sensors

RHEINTACHO Two-Channel Hall PWM Sensors

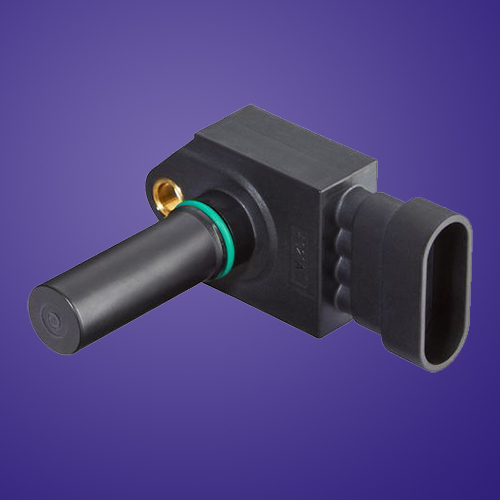

RHEINTACHO Two-Channel Differential Hall Sensors

Two-channel Hall sensors detect both speed and direction simultaneously. Depending on the version, these products offer 2X frequency outputs with phase shifted signals (V1) or 1x frequency signal and 1x digital direction signal (V2). Two-channel differential Hall sensors work well in applications such as mobile operating machines, electric drives, and hydraulic drives.

Features:

  • Air gap: max. 3 mm
  • Frequency: 0.1 Hz … 20 kHz
  • Degree of protection: depending on sensor series IP65 / IP67 / IP69K / IP6K9K
  • Alignment required

RHEINTACHO Two-Channel Differential Hall Sensors

RHEINTACHO Two-Channel Differential Hall Sensors

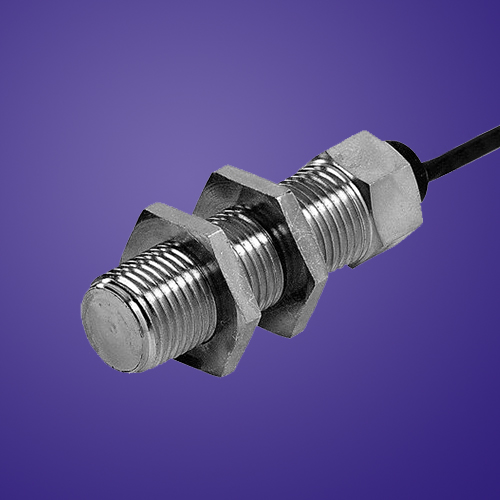

RHEINTACHO Magneto Inductive Sensors

Magneto-inductive sensors are suitable for speed measurement at high speed impulses, such as scanning of ferromagnetic gearwheels inside a hydro motor or an oil-filled gearbox. These sensors are often used in utility vehicles, mobile operating machines, hydraulic drives, and combustion engines.

Features:

  • Air gap: 1.5 mm
  • Frequency: 50 Hz … 30 kHz
  • Degree of protection: IP67

RHEINTACHO Magneto Inductive Sensors

RHEINTACHO Magneto Inductive Sensors
